- Rate voltage: 24/48VDC
- Charging current: 30A (default)
- Rated output power: 2000~5000W
- Battery type: U0-U7 can be set
- Output frequency: 50/60Hz±3% Auto
- Machine Size: L*W*H (mm) : 655* 248*182
- Protection: battery over voltage/low voltage, overload, short circuit, over-temperature.
Stable Pure Sine Wave Output
- Provide high-quality and high-efficiency alternating current;
- Avoid the problem of electromagnetic pollution;
- High frequency technology, adapts to any kind of load (including TV, LCD, refrigerator and other inductive loads);
- Greatly reduce possible noise interference.

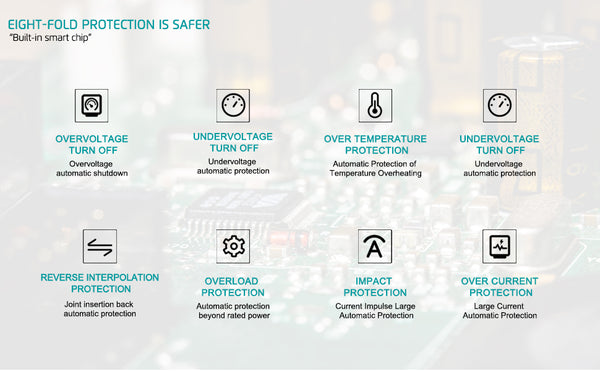

Perfect Protecting Functions
- Output overload protection,
- Short circuit protection,
- Battery overvoltage/low voltage protection
- Over temperature, various of automatic protection and alarm warning;
- Working temperature 0℃~40℃,resistant to high and low temperature, well perform in other harsh environments.
Customizable and Wide Application
By adjusting matching parameters, it is compatible with LFP, GEL, AGM, lead acid, calcium batteries, and lithium battery, suitable for U0-U7 types of battery;
Various output modes available for different requirements.
Resistant to high and low temperature as the working temperature and well perform in other harsh environments.
For detailed operational advice and attentions, please check the user manual attached below. (under Technical Specification)
LiFePO4, GEL, AGM, Lead Acid, Lithuim Battery Compatible
LiFePO4 GEL AGM
