Parallel Solar Inverter XTHF Series
This is a multi functional off grid hybrid inverter,it combining functions of inverter,solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority,and acceptable input voltage based on different applications.
Main Features:
1. Max. PV input 145Vdc with 80A MPPT Inbuilt;
2. Wide utility input range 90Vac-280Vac;
3. Stable 60A AC battery charger;
4. Intelligent functionality enables utility and solar input prioritization;
5. Parallel connections up to 9 units as 45KVA system.
| Model | XTHF5KVA |
| RATED POWER | 5000VA/5000W |
| INPUT | |
| Voltage | 240 VAC |
| Selectable Voltage Range |
90-280 VAC |
| Frequency Range | 60 Hz |
| OUTPUT | |
| AC Voltage Regulation | 240 VAC 士 5% |
| Surge Power | 10000VA |
| Efficiency (Peak) | 90%-93% |
| Transfer Time |
20 ms |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Max. PV Array Open Circuit Voltage | 500VDC |
| Max. PV Array Power | 4000 W |
| MPP Range ©operating Voltage | 120-450VDC |
| Max. Solar Charge Current | 80 A |
| Max. AC Charge Current | 60 A |
| Max. Charge Current | 80 A |
| PHYSICAL | |
| Dimension. D x Wx H (mm | 130x300x450 |
| Net Weight (kgs) | 22kg |
| Communication Interface | USB/RS232 |
| ENVIRONMENT | |
| Humidity | 5% to 95% |
| Operating Temperature | -10° C ~ 50° C |
| Storage Temperature | -15° C ~ 60° C |

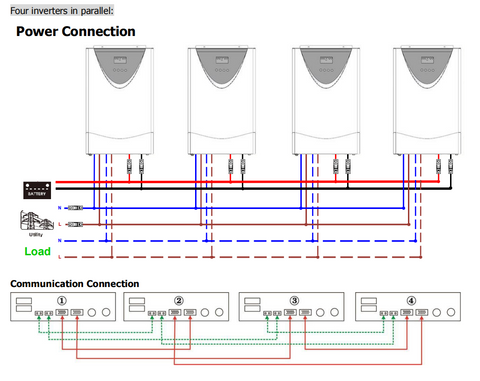

System Parallel Example:

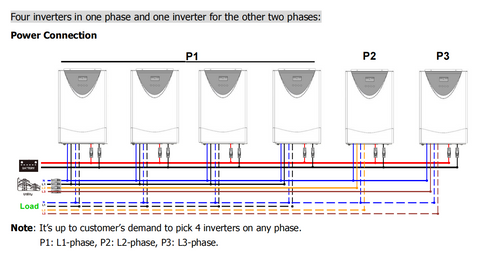

Three Phase Parallel Example:
