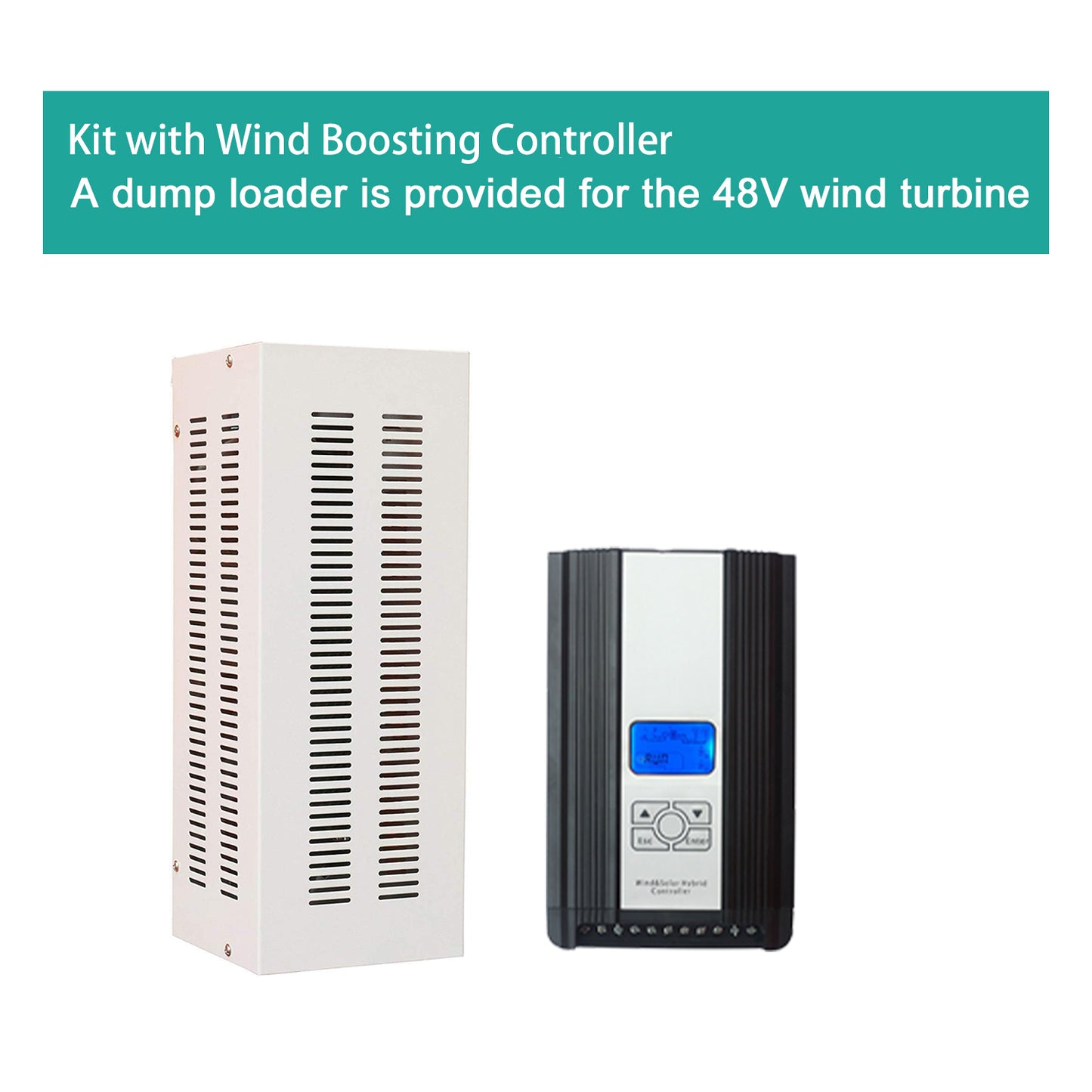

Tumo-Int 3000W 3Blades Wind Turbine Generator Kit with Wind Boosting Controller (24/48V)

Tumo-Int 3000W 3Blades Wind Turbine Generator Kit with Wind Boosting Controller (24/48V)

$2,799.00
$3,299.00 $2,799.00
Sale Sold out
Shipping calculated at checkout.
Power
Voltage
  • 【High Efficiency】 Fully utilizes the wind energy, satisfying annual power generation; Superior generation capacity generally can cover normal household electricity consumption, and provides surplus electricity; Optimized design of aerodynamic contour and structure, low start-up wind speed; Auto wind direction adjustment.
  • 【Save Energy Bills】Surplus electricity can sell to power company; Low maintenance cost, high production, better ROI.
  • [Safe and reliable] Adopts mechanical and electromagnetic dual over-speed control design, improve safety and reliability in operation.
  • 【Durable and Sturdy】 UV, mould, salt spray and damp air resistance; The shell is robust and compact; Can be used for 15 years without any maintenance if it is correctly applied.
  • 【Low Noise】 The aluminum alloy case of the wind turbine is light and pretty, low vibration noise interference.

  • 3000W 3Blades Wind Turbine Parameter Table
  • 3000W 3Blades Wind Turbine User Manual


    • Product Description

    Great Performance



    • High efficiency of wind energy conversion.
    • Performs well in low wind speed weather.
    • Low vibration and low noise during operation.
    • Adjust direction automatically to maximize efficiency.
    • Not only can supply sufficient electricity, but also can provide surplus power to sell to the public grid.



    High-Quality Material and Ingenious Design



    • The generator adopts a patented permanent magnet rotor alternator, with the specially designed stator, efficiently decrease resistance torque.
    • Mechanical and electromagnetic dual over-speed control are used to avoid damage of strong wind.
    • Wind energy can effectively turn into electricity through precise injection molding blades and optimized design of aerodynamic contour and structure of the generator.

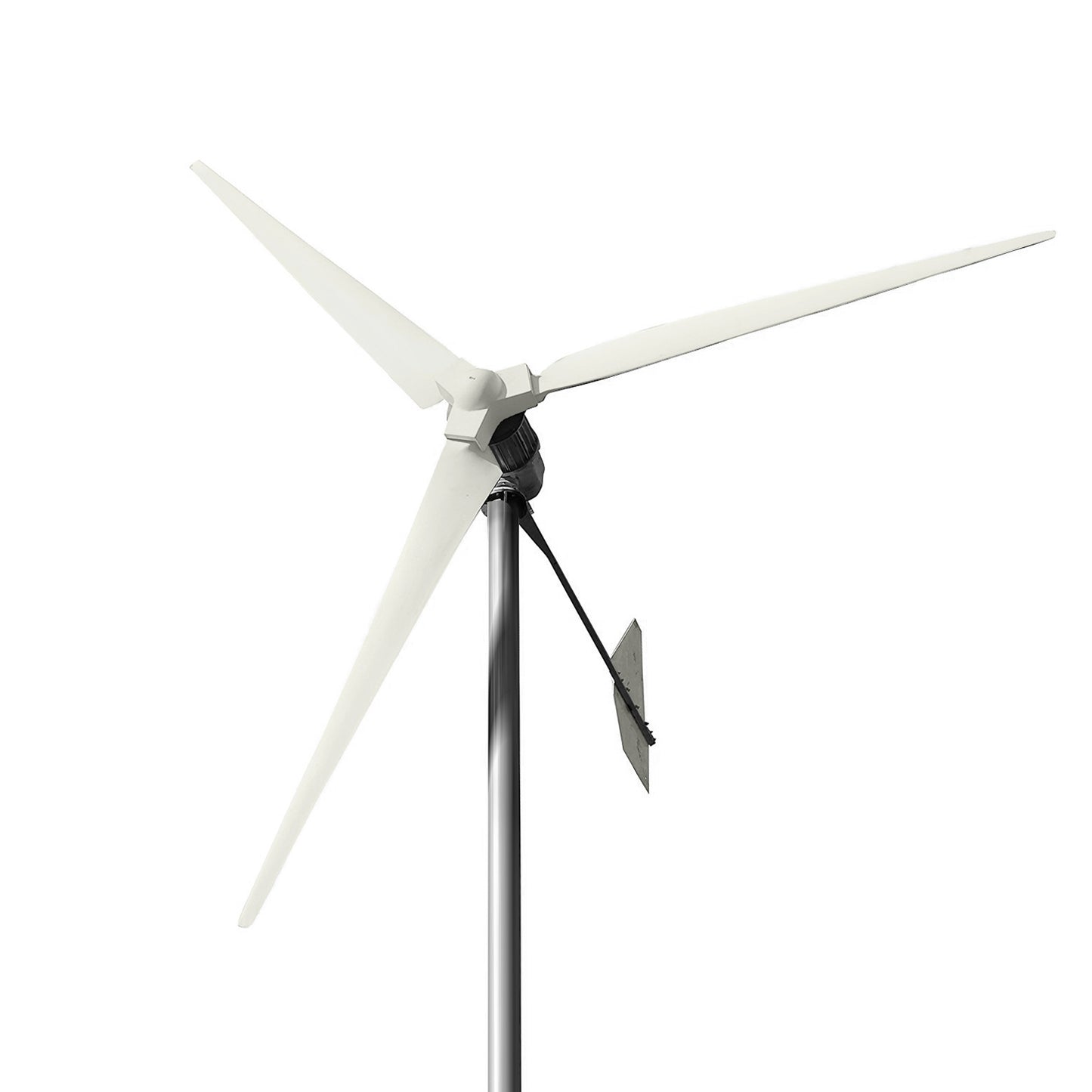

    3000 Watts 3 Blades Wind Turbine

    Rated Power 3000W
    Start-up Wind Speed 3m/s (6.5mph)
    Rated Wind Speed 11m/s (24.5mph)
    Survival Wind Speed 45m/s / (100mph)
    Blades Number ３
    Body material Reinforced glass fibar
    Blades material Steel
    NE-3000W

    Mechanical and electromagnetic dual over-speed control are used to avoid damage of strong wind.

    Wide Application

    3000W3

    On Grid Wiring

    Apart from the wind turbine and controller provided, you also need a battery (grid-tied system does not need battery), an inverter, a pole or a tower, and some cables to make them work normally in the wind energy system.

    Can apply to grid-tied or off-tied system both should be connected with the corresponding inverter.

    Can apply to various types of battery both should be connected with the corresponding controller.



    • For detailed operational advice and attentions, please check the user manual attached below. (Under Technical Specification)



    Off Grid Wiring

    3000W3

    Monitor and Adjust Parameters by PC Software

    Monitoring items are comprehensive and graphically displayed.

    The software is fully functioned, displaying wind or solar battery data, store operational data, modify parameters, and control the status of wind turbine.

    Equipped with a fault alarm system, and alarm contents are stored automatically for future reference.

    Multi-language version.

    NE-3000

    After-Sales Service



    • We promise that if the products have quality problems, you can return the goods within 30 days of purchase.
    • If the parts are damaged within three years of purchase, we can send you new ones for free.



    Quality Promises



    • We promise that the generator is of high quality, good function, complete body, and rigorously checked before delivery.
    • The wind turbine can used for 15 years if it is correctly applied, and we will provide maintenance problem for free within three years of purchase.Damages that occurred in the following situations are not covered: Privately dismantle or seriously violate operation (not according to instructions use). In such cases, maintenance cost has to be paid.
